Planetary proServo
PP08-36
COSTR. proServo Joint
Micro flexible servo robot joint with Planetary Reducer.

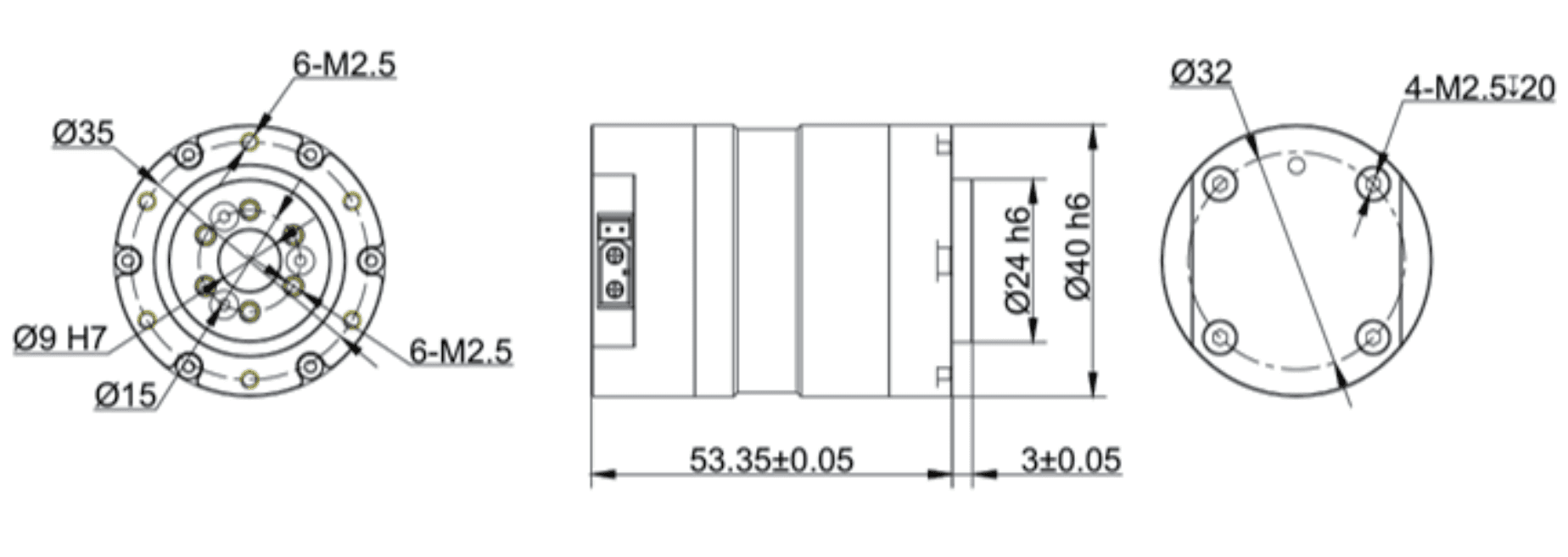

PP08-36 Introduction [Unit: mm]
Voltage and Current Parameters
Rated Voltage:
24 V
Rated Power:
36 W
Rated Speed:
50 rpm
No-load Speed:
50 rpm
Rated Torque:
1.0 N·m
Peak Torque:
2.2 N·m
Phase Current Full Scale:
3.0 A
Max Bus Current:
0.85 A
Static Bus Current:
0.04 A
Basic Parameters
Motor Type:
Brushless Servo Motor
Reducer type:
Planetary Reducer
Torsional Coefficient:
1.1 Nm/a
Axial Bearing Capacity:
1284 N
Radial Bearing Capacity:
2520 N
Temperature Range:
-20°C to +80°C
Typical Noise Level:
<= 70 dB (A)
Resolution:
-
Reduction Ratio:
36:1
Reverse Backlash:
12 Arcmin
