Frameless Torque Motor
FM10015-W
Costr. Frameless Torque Motor
Costr. Engine Series

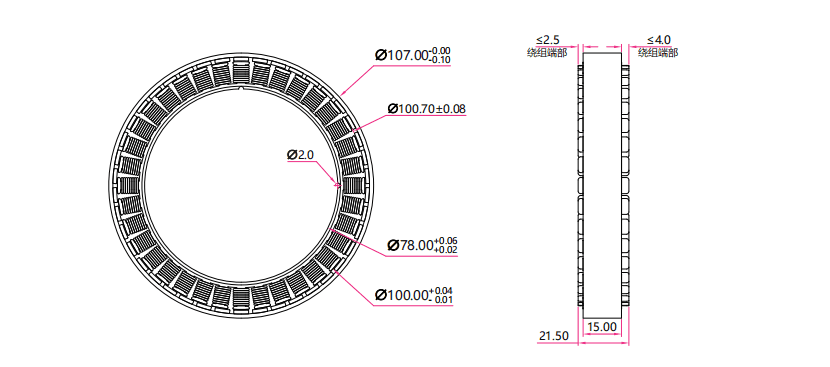

FM10015-W Introduction [Unit: mm]
Stator Outer Diameter:
Φ107 mm
Rotor Shaft Diameter:
Φ78 mm
Height:
15 mm
Weight:
-
Basic Parameters
Motor Type:
Inner Rotor Frameless Motor
Voltage Range:
36-72 VDC
Slots / Poles:
36P 42S
Ambient Temperature Range:
-20~+80 °C
Noise Level:
<= 70 dB(A)
Performance Parameters
Rated Voltage:
48 VDC
Rated Current:
16.7 A
Rated Power:
754 W
No-load Speed
3700 Rpm
Rated Speed:
3300 Rpm
Rated Torque:
2.1 N.m
Peak Torque:
6.3 N.m
Max-Effciency:
89.7 %
Line-Line Resistance:
-
Line-Line Inductance:
0.04 mH
Torque Constant:
0.098 Nm/A
Back-EMF Constant:
0.111 Va/Rad
Back-EMF Constant Curve
