Frameless Torque Motor
FM8010-W
Costr. Frameless Torque Motor
Costr. Engine Series

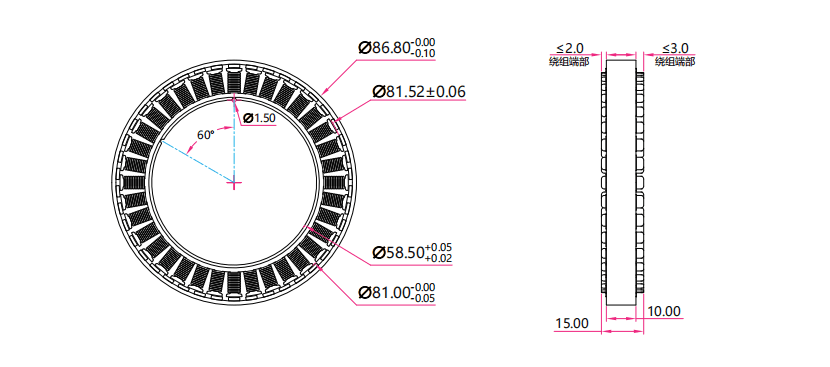

FM8010-W Introduction [Unit: mm]
Stator Outer Diameter:
Φ86.8 mm
Rotor Shaft Diameter:
Φ58.5 mm
Height:
10 mm
Weight:
-
Basic Parameters
Motor Type:
Inner Rotor Frameless Motor
Voltage Range:
24-48 VDC
Slots / Poles:
36P 42S
Ambient Temperature Range:
-20~+80 °C
Noise Level:
<= 70 dB(A)
Performance Parameters
Rated Voltage:
48 VDC
Rated Current:
17.5 A
Rated Power:
716.5 W
No-load Speed
4870 Rpm
Rated Speed:
4000 Rpm
Rated Torque:
1.7 N.m
Peak Torque:
5.2 N.m
Max-Effciency:
80.7 %
Line-Line Resistance:
-
Line-Line Inductance:
0.063 mH
Torque Constant:
0.084 Nm/A
Back-EMF Constant:
0.095 Va/Rad
Back-EMF Constant Curve
