Frameless Torque Motor
FM3015-N
Costr. Frameless Torque Motor
Costr. Engine Series

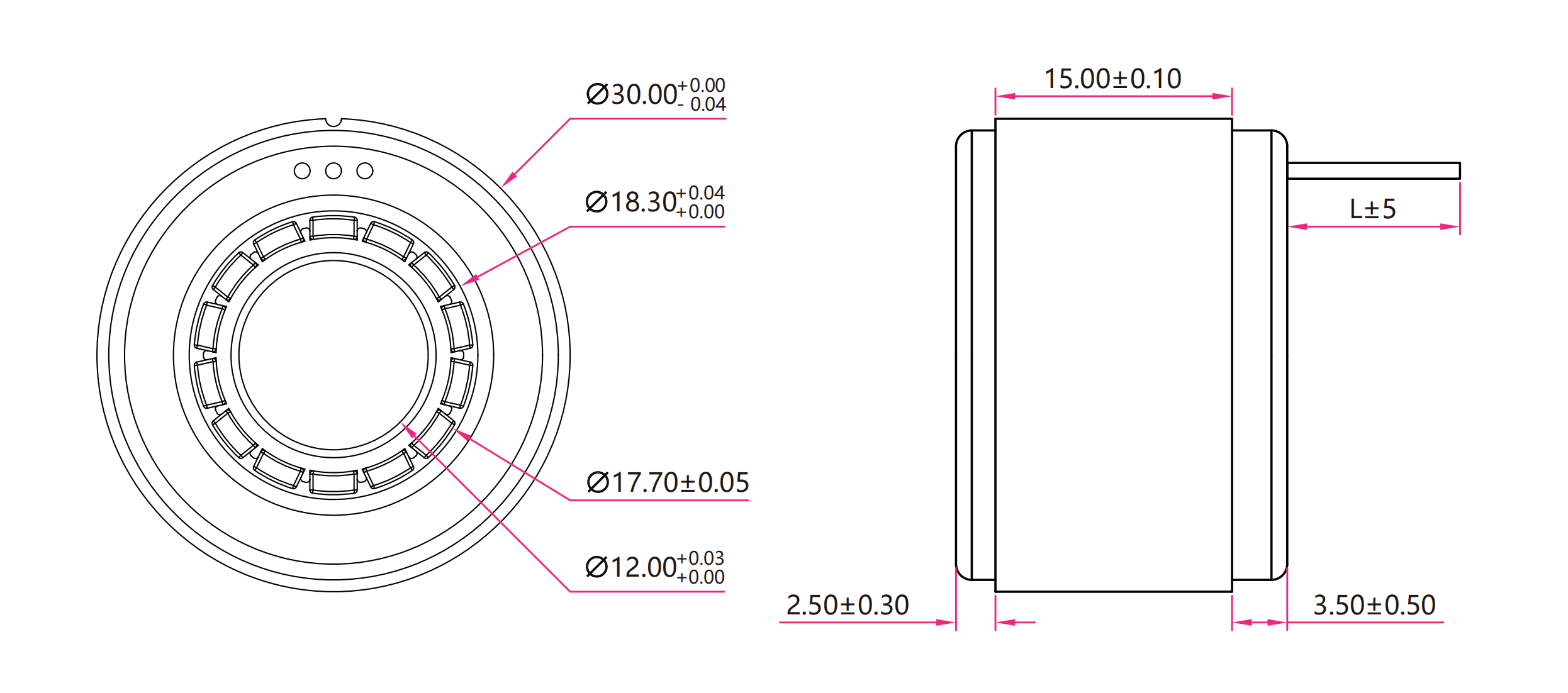

FM3015-N Introduction [Unit: mm]
Stator Outer Diameter:
Φ30 mm
Rotor Shaft Diameter:
Φ12 mm
Height:
21mm
Weight:
-
Basic Parameters
Motor Type:
Inner Rotor Frameless Motor
Voltage Range:
24-28 VDC
Slots / Poles:
12P 14S
Ambient Temperature Range:
-20~+80 °C
Noise Level:
<= 60 dB(A)
Performance Parameters
Rated Voltage:
24 VDC
Rated Current:
1.8 A
Rated Power:
41W
No-load Speed
6280 Rpm
Rated Speed:
5000 Rpm
Rated Torque:
0.08 N.m
Peak Torque:
0.25 N.m
Max-Effciency:
85.1 %
Line-Line Resistance:
-
Line-Line Inductance:
0.22 mH
Torque Constant:
0.031 Nm/A
Back-EMF Constant:
0.036 Va/Rad

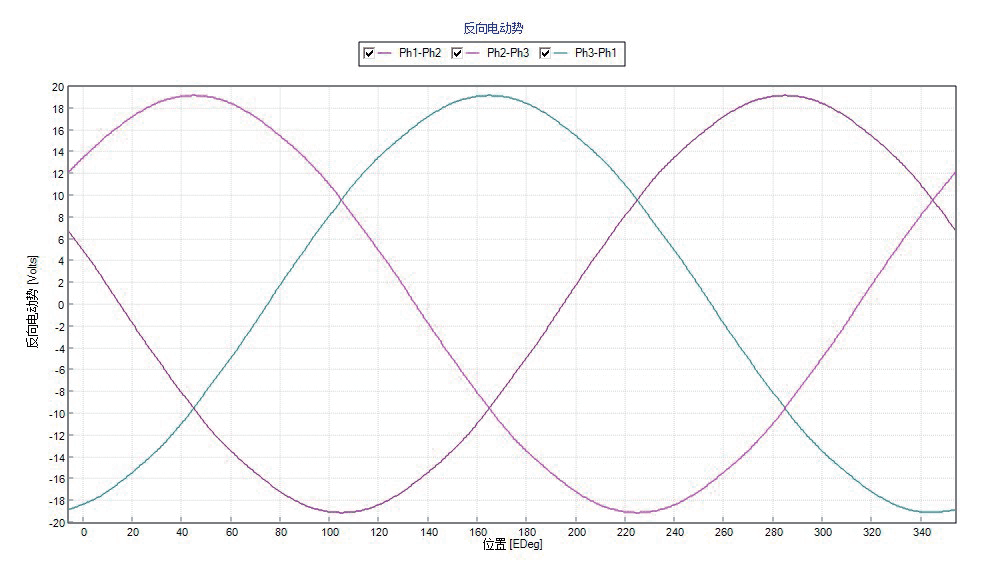

Back-EMF Constant Curve
