Frameless Torque Motor
FM4015-N
Costr. Frameless Torque Motor
Costr. Engine Series

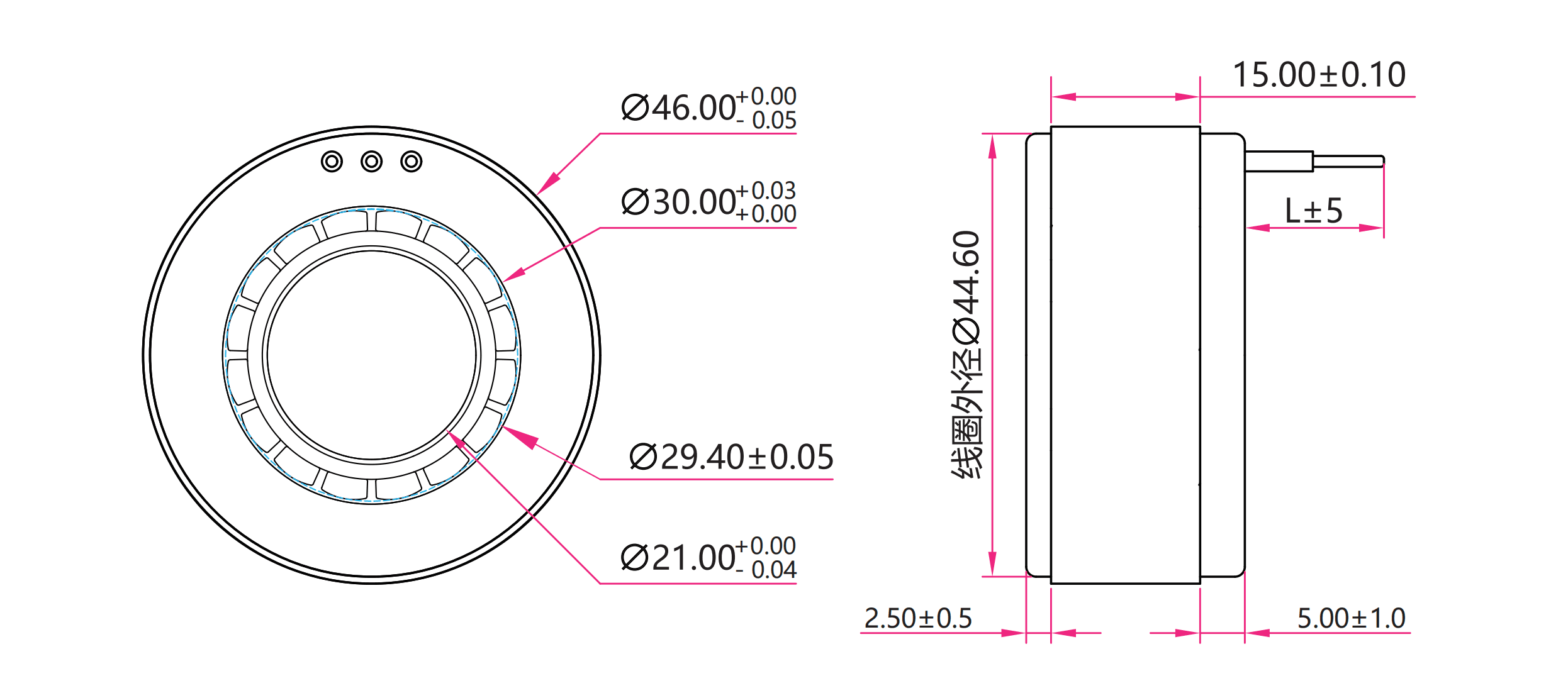

FM4015-N Introduction [Unit: mm]
Stator Outer Diameter:
Φ46 mm
Rotor Shaft Diameter:
Φ21 mm
Height:
22.5mm
Weight:
-
Basic Parameters
Motor Type:
Inner Rotor Frameless Motor
Voltage Range:
24-28 VDC
Slots / Poles:
18P 16S
Ambient Temperature Range:
-20~+80 °C
Noise Level:
<= 60 dB(A)
Performance Parameters
Rated Voltage:
24 VDC
Rated Current:
4 A
Rated Power:
107 W
No-load Speed
4660 Rpm
Rated Speed:
3000 Rpm
Rated Torque:
0.34 N.m
Peak Torque:
1.02 N.m
Max-Effciency:
87.2 %
Line-Line Resistance:
-
Line-Line Inductance:
0.45 mH
Torque Constant:
0.061 Nm/A
Back-EMF Constant:
0.073 Va/Rad

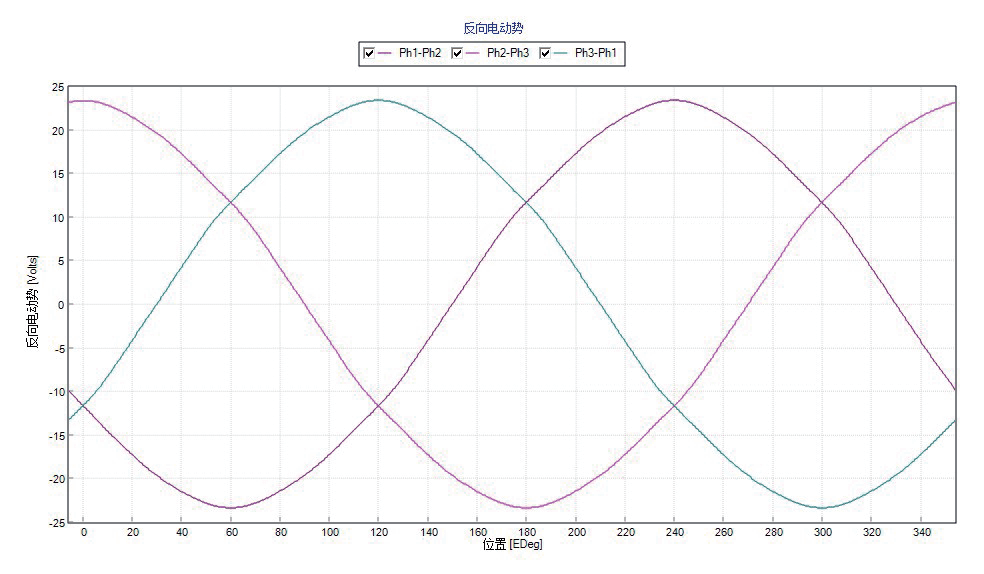

Back-EMF Constant Curve
