Frameless Torque Motor
FM5015-N
Costr. Frameless Torque Motor
Costr. Engine Series

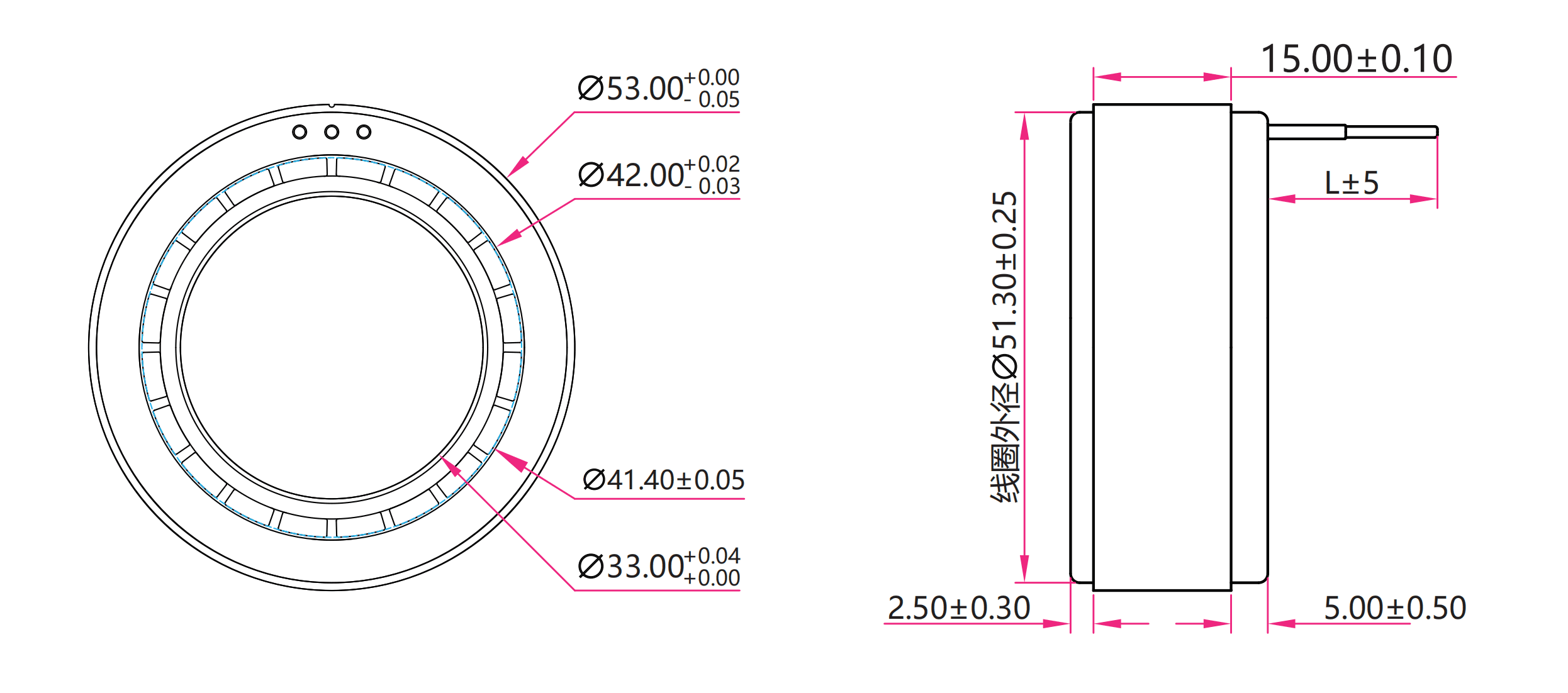

FM5015-N Introduction [Unit: mm]
Stator Outer Diameter:
Φ53 mm
Rotor Shaft Diameter:
Φ33 mm
Height:
22.5mm
Weight:
-
Basic Parameters
Motor Type:
Inner Rotor Frameless Motor
Voltage Range:
24-28 VDC
Slots / Poles:
24P 20S
Ambient Temperature Range:
-20~+80 °C
Noise Level:
<= 70 dB(A)
Performance Parameters
Rated Voltage:
36 VDC
Rated Current:
5 A
Rated Power:
149 W
No-load Speed
4220 Rpm
Rated Speed:
3000 Rpm
Rated Torque:
0.47 N.m
Peak Torque:
1.5 N.m
Max-Effciency:
87.9 %
Line-Line Resistance:
-
Line-Line Inductance:
0.10 mH
Torque Constant:
0.068 Nm/A
Back-EMF Constant:
0.081 Va/Rad

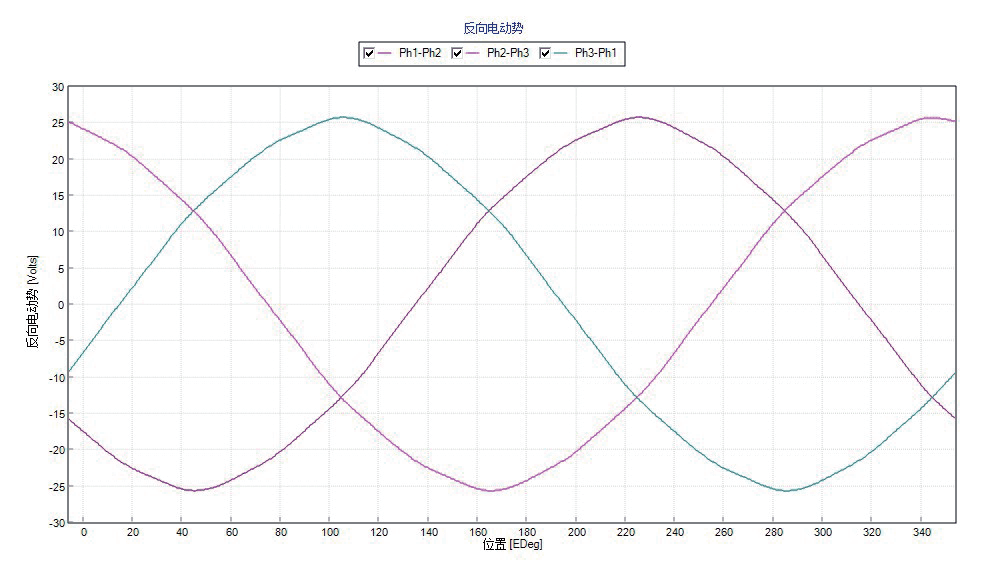

Back-EMF Constant Curve
