Frameless Torque Motor
FM6015-N
Costr. Frameless Torque Motor
Costr. Engine Series

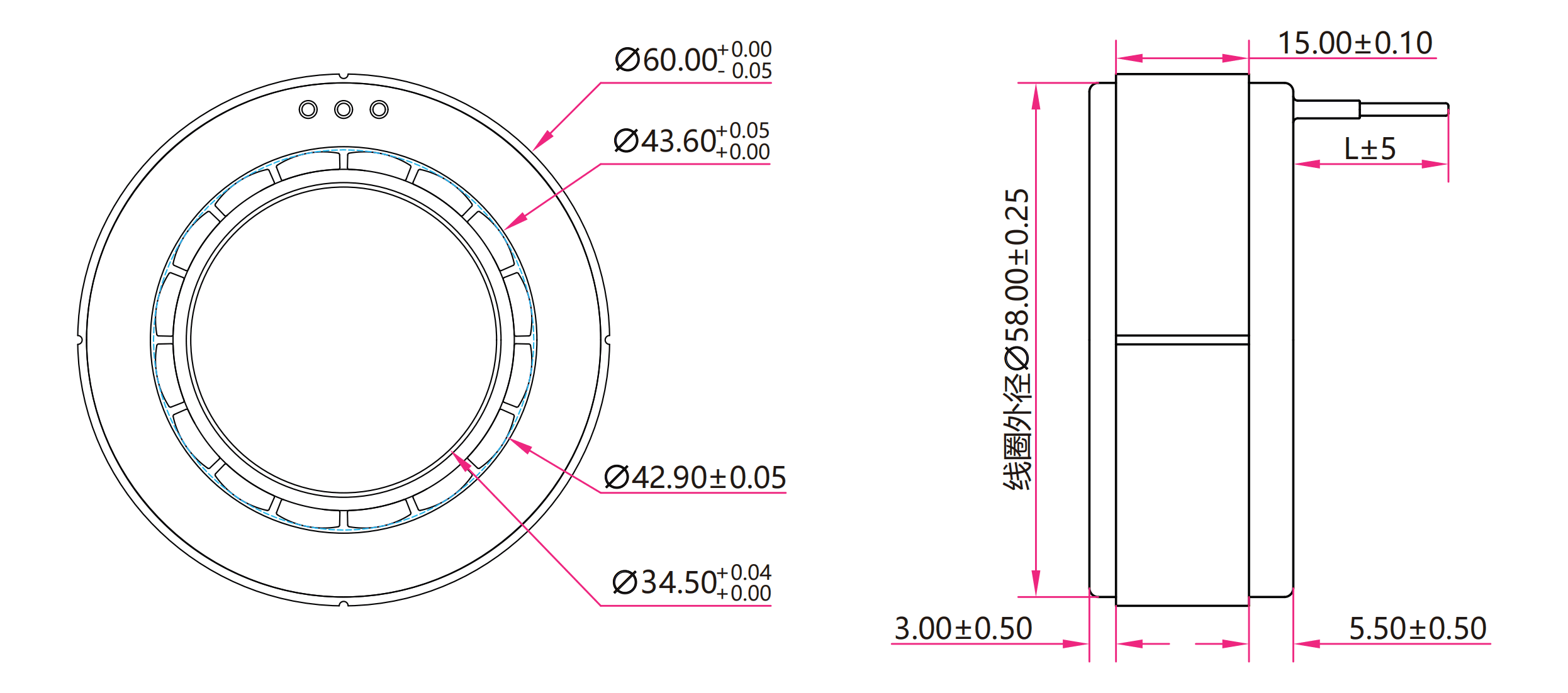

FM6015-N Introduction [Unit: mm]
Stator Outer Diameter:
Φ60 mm
Rotor Shaft Diameter:
Φ34.5 mm
Height:
23.5mm
Weight:
-
Basic Parameters
Motor Type:
Inner Rotor Frameless Motor
Voltage Range:
24-28 VDC
Slots / Poles:
18P 16S
Ambient Temperature Range:
-20~+80 °C
Noise Level:
<= 70 dB(A)
Performance Parameters
Rated Voltage:
48 VDC
Rated Current:
8 A
Rated Power:
296 W
No-load Speed
4600 Rpm
Rated Speed:
3000 Rpm
Rated Torque:
0.94 N.m
Peak Torque:
2.38 N.m
Max-Effciency:
87.6 %
Line-Line Resistance:
-
Line-Line Inductance:
0.22 mH
Torque Constant:
0.084 Nm/A
Back-EMF Constant:
0.099 Va/Rad

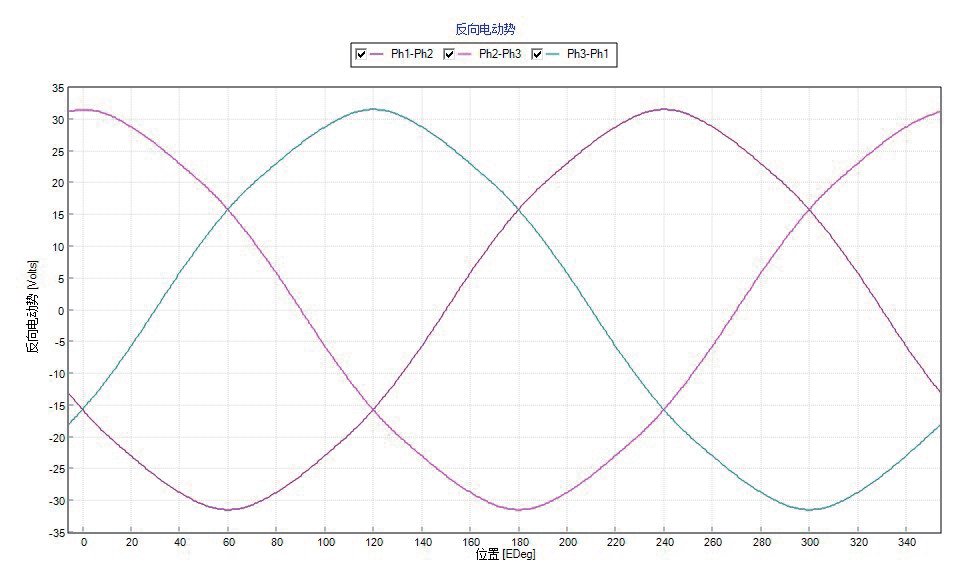

Back-EMF Constant Curve
