Frameless Torque Motor
FM7015-N
Costr. Frameless Torque Motor
Costr. Engine Series

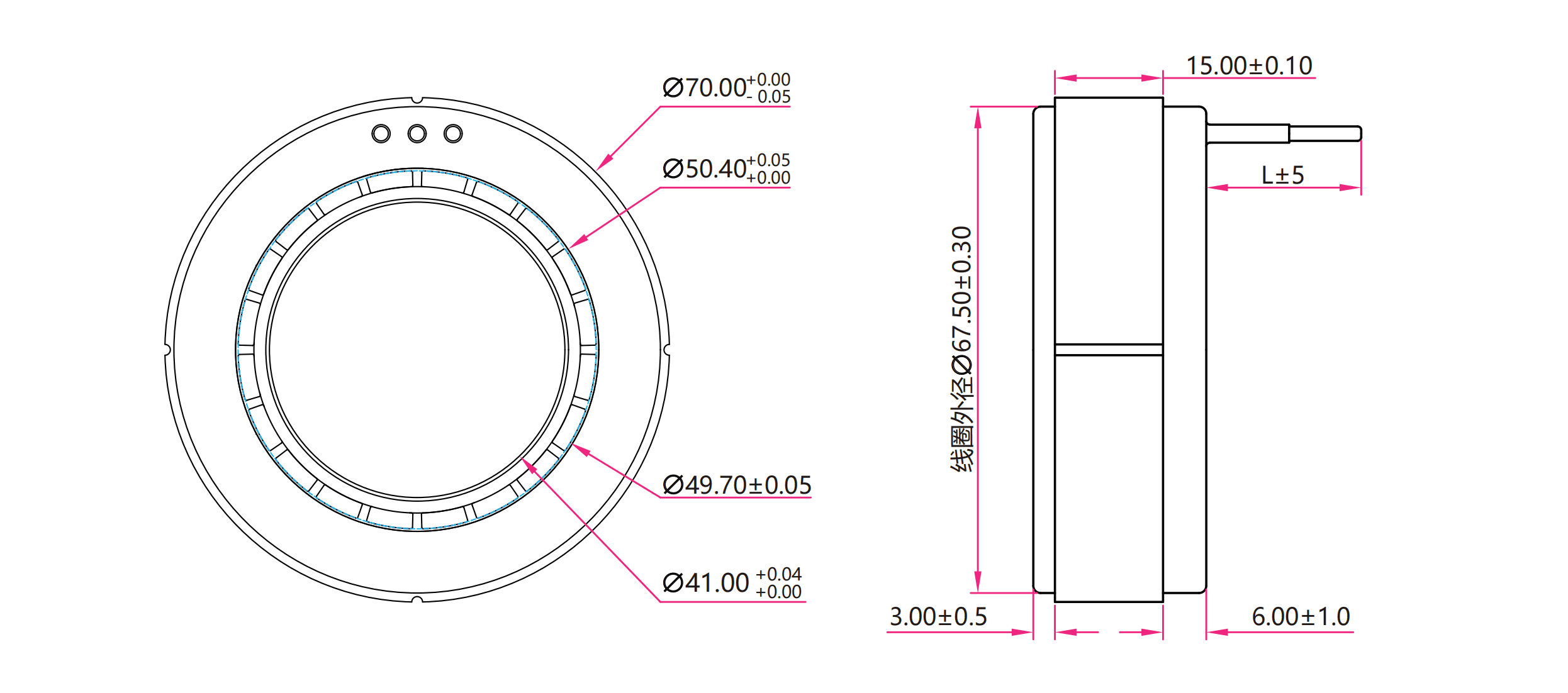

FM7015-N Introduction [Unit: mm]
Stator Outer Diameter:
Φ70 mm
Rotor Shaft Diameter:
Φ41 mm
Height:
24 mm
Weight:
-
Basic Parameters
Motor Type:
Inner Rotor Frameless Motor
Voltage Range:
36-72 VDC
Slots / Poles:
18P 20S
Ambient Temperature Range:
-20~+80 °C
Noise Level:
<= 70 dB(A)
Performance Parameters
Rated Voltage:
48 VDC
Rated Current:
9 A
Rated Power:
371 W
No-load Speed
4600 Rpm
Rated Speed:
2500 Rpm
Rated Torque:
1.4 N.m
Peak Torque:
4.2 N.m
Max-Effciency:
89.4 %
Line-Line Resistance:
-
Line-Line Inductance:
0.31 mH
Torque Constant:
0.112 Nm/A
Back-EMF Constant:
0.13 Va/Rad

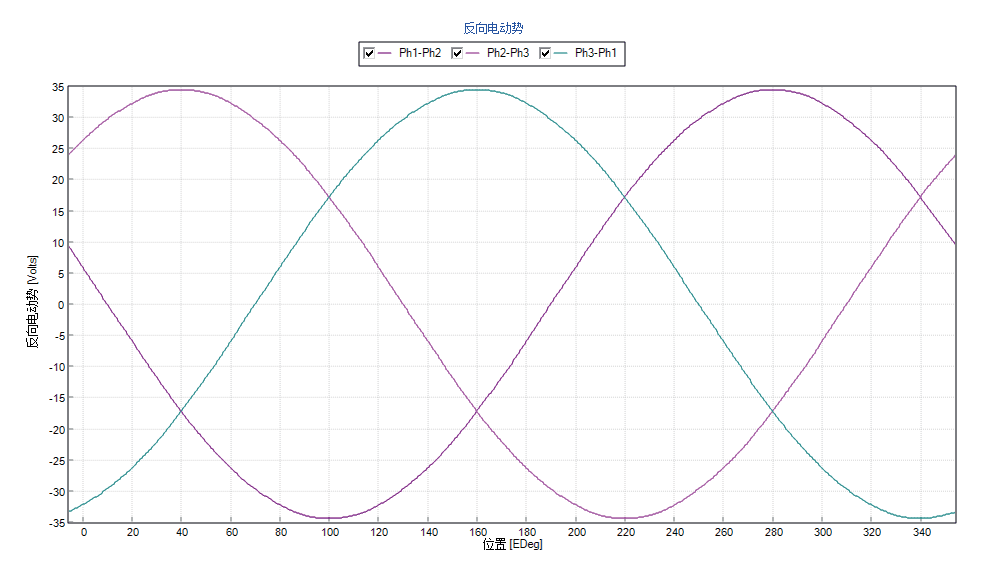

Back-EMF Constant Curve
