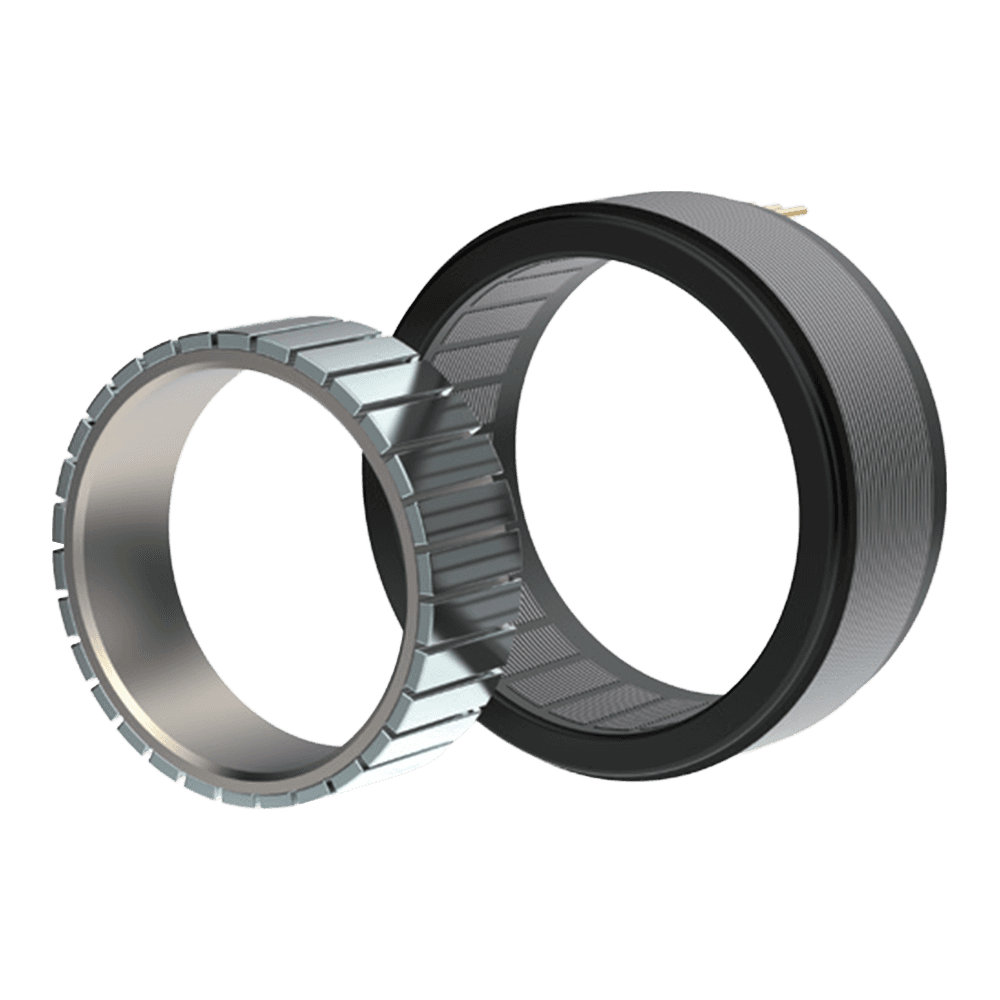

Frameless Torque Motor
FM8020-N
Costr. Frameless Torque Motor
Costr. Engine Series

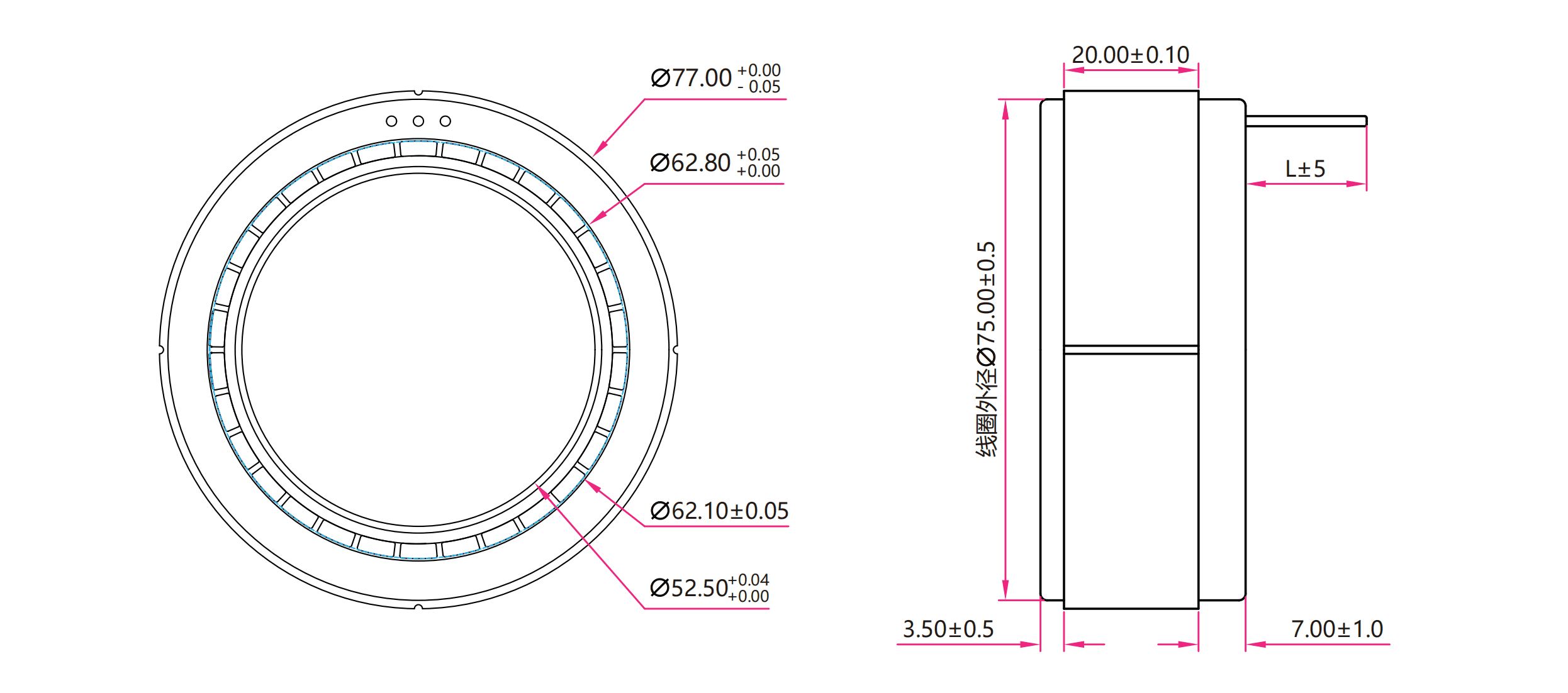

FM8020-N Introduction [Unit: mm]
Stator Outer Diameter:
Φ77 mm
Rotor Shaft Diameter:
Φ52.5 mm
Height:
30.5 mm
Weight:
-
Basic Parameters
Motor Type:
Inner Rotor Frameless Motor
Voltage Range:
36-72 VDC
Slots / Poles:
27P 30S
Ambient Temperature Range:
-20~+80 °C
Noise Level:
<= 70 dB(A)
Performance Parameters
Rated Voltage:
48 VDC
Rated Current:
13.5 A
Rated Power:
552 W
No-load Speed
4600 Rpm
Rated Speed:
3000 Rpm
Rated Torque:
1.75 N.m
Peak Torque:
5.2 N.m
Max-Effciency:
91.5 %
Line-Line Resistance:
-
Line-Line Inductance:
0.61 mH
Torque Constant:
0.094 Nm/A
Back-EMF Constant:
0.097 Va/Rad

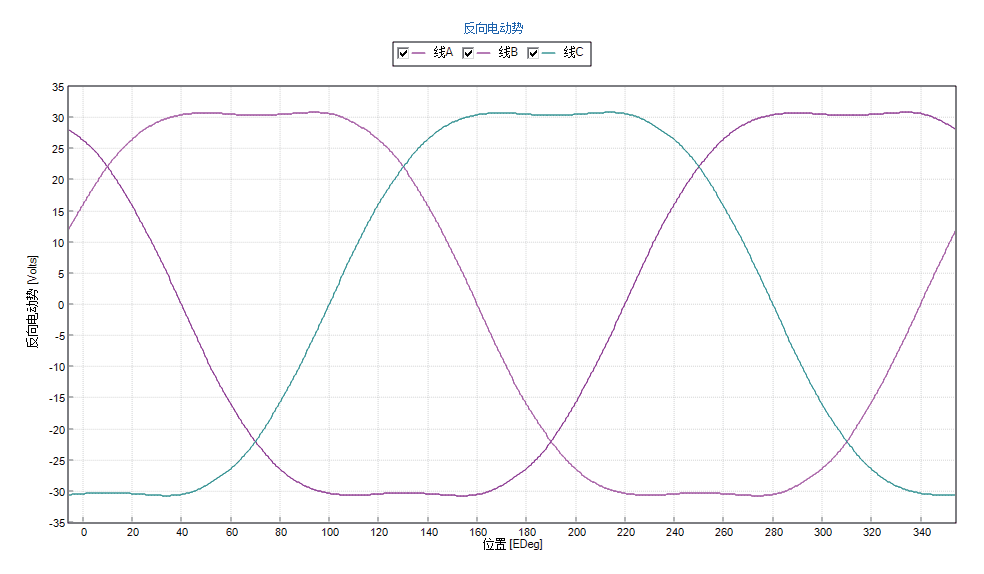

Back-EMF Constant Curve
