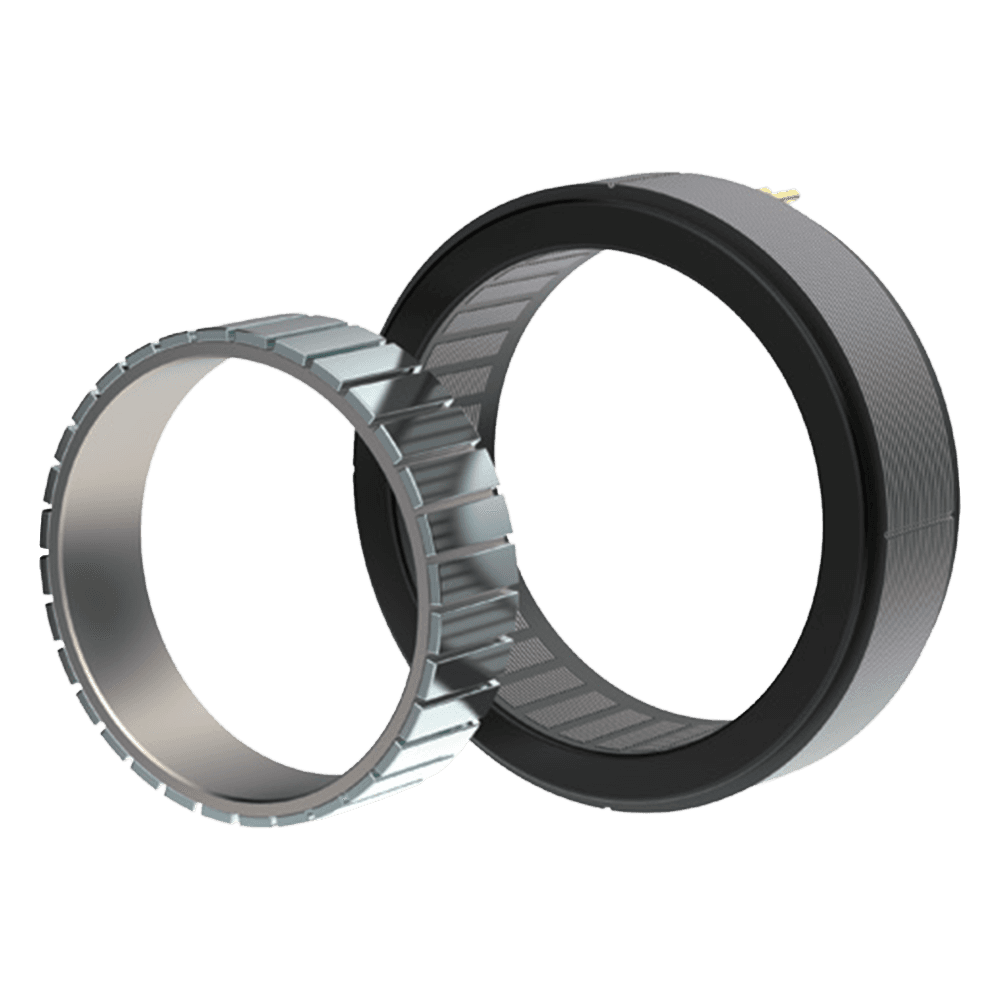

Frameless Torque Motor
FM9020-N
Costr. Frameless Torque Motor
Costr. Engine Series

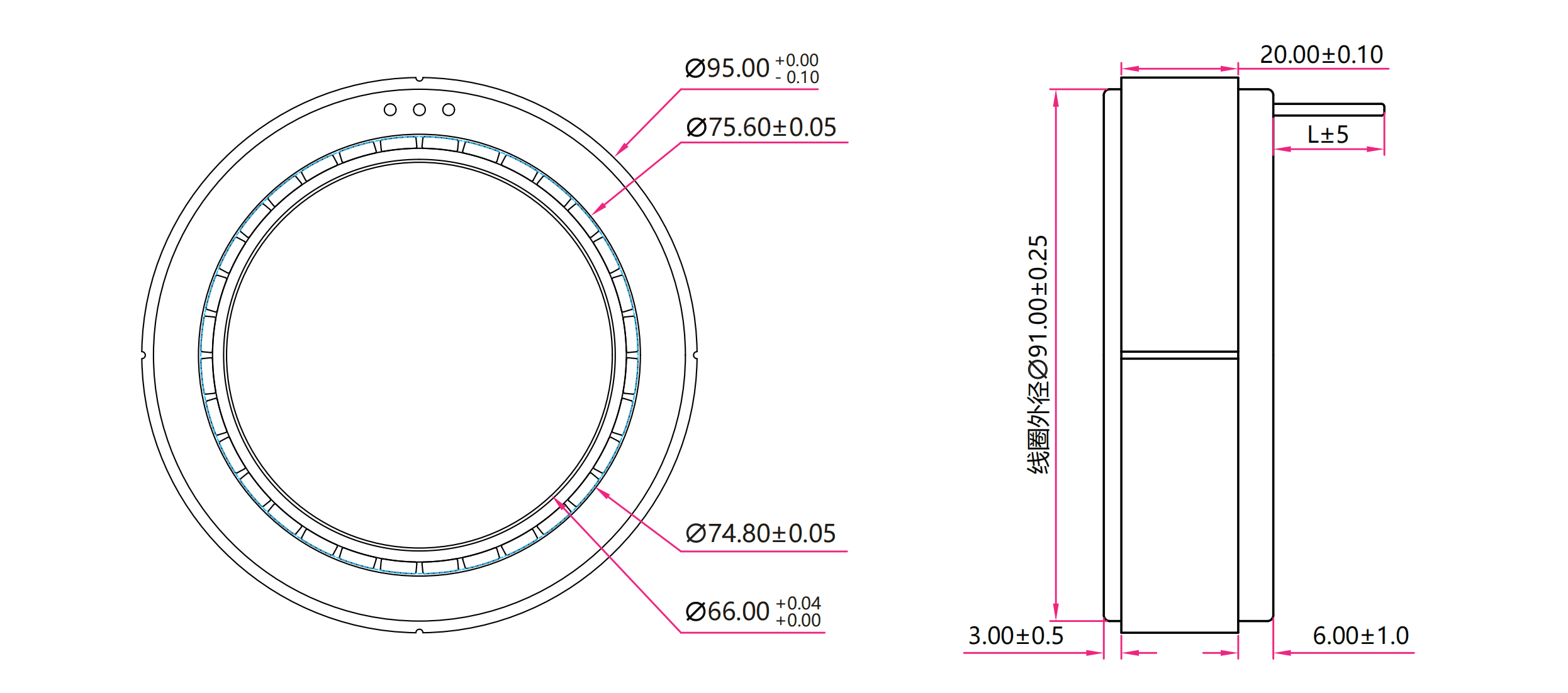

FM9020-N Introduction [Unit: mm]
Stator Outer Diameter:
Φ95 mm
Rotor Shaft Diameter:
Φ66 mm
Height:
29 mm
Weight:
-
Basic Parameters
Motor Type:
Inner Rotor Frameless Motor
Voltage Range:
36-72 VDC
Slots / Poles:
36P 32S
Ambient Temperature Range:
-20~+80 °C
Noise Level:
<= 70 dB(A)
Performance Parameters
Rated Voltage:
48 VDC
Rated Current:
11 A
Rated Power:
503 W
No-load Speed
2470 Rpm
Rated Speed:
2000 Rpm
Rated Torque:
2.4 N.m
Peak Torque:
7.5 N.m
Max-Effciency:
92.2 %
Line-Line Resistance:
-
Line-Line Inductance:
0.09 mH
Torque Constant:
0.157 Nm/A
Back-EMF Constant:
0.185 Va/Rad

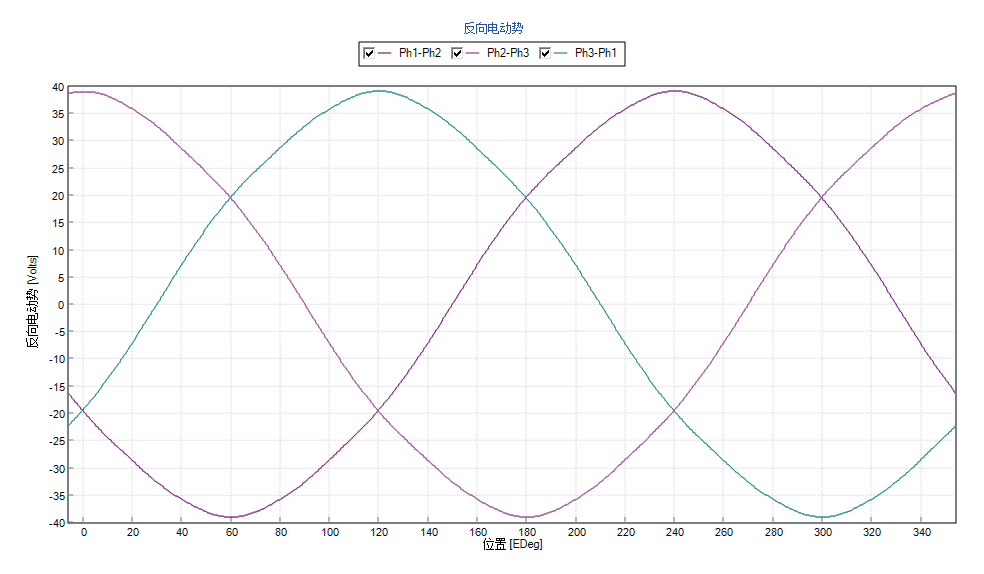

Back-EMF Constant Curve
