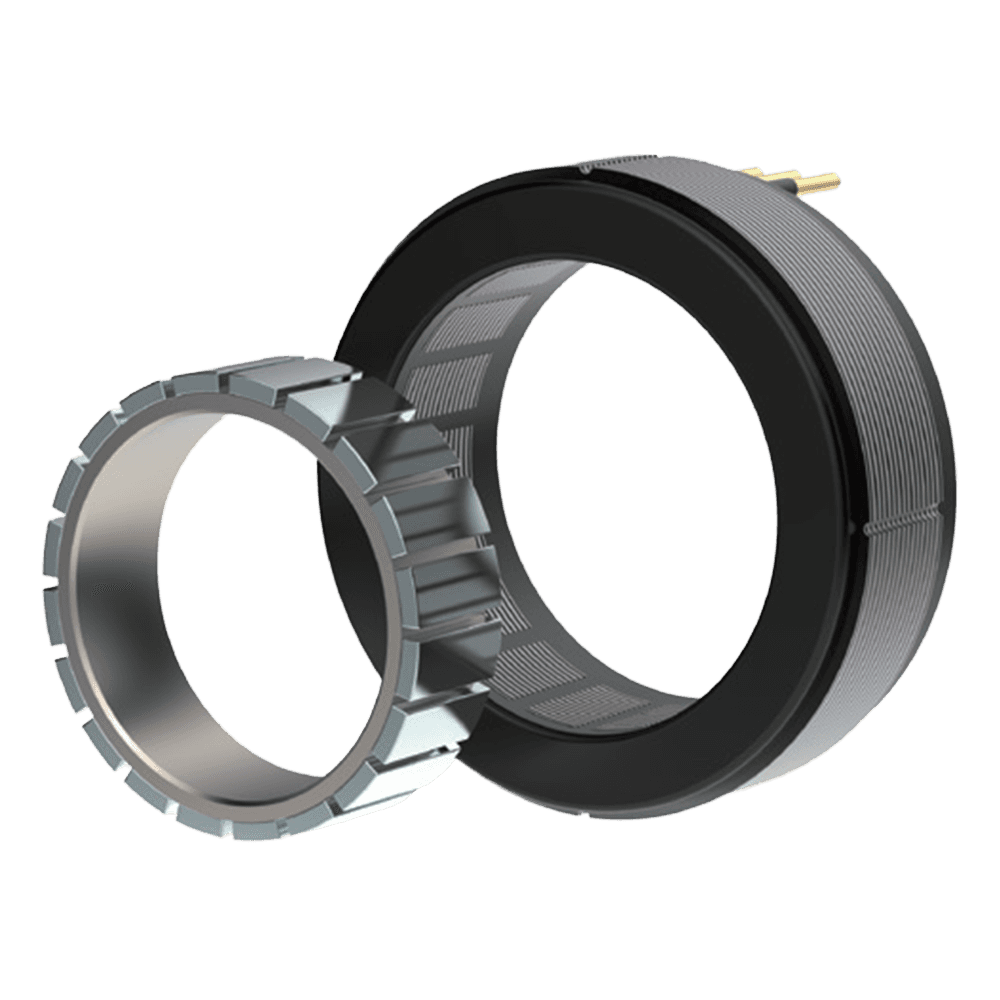

Frameless Torque Motor
FM10020-N
Costr. Frameless Torque Motor
Costr. Engine Series

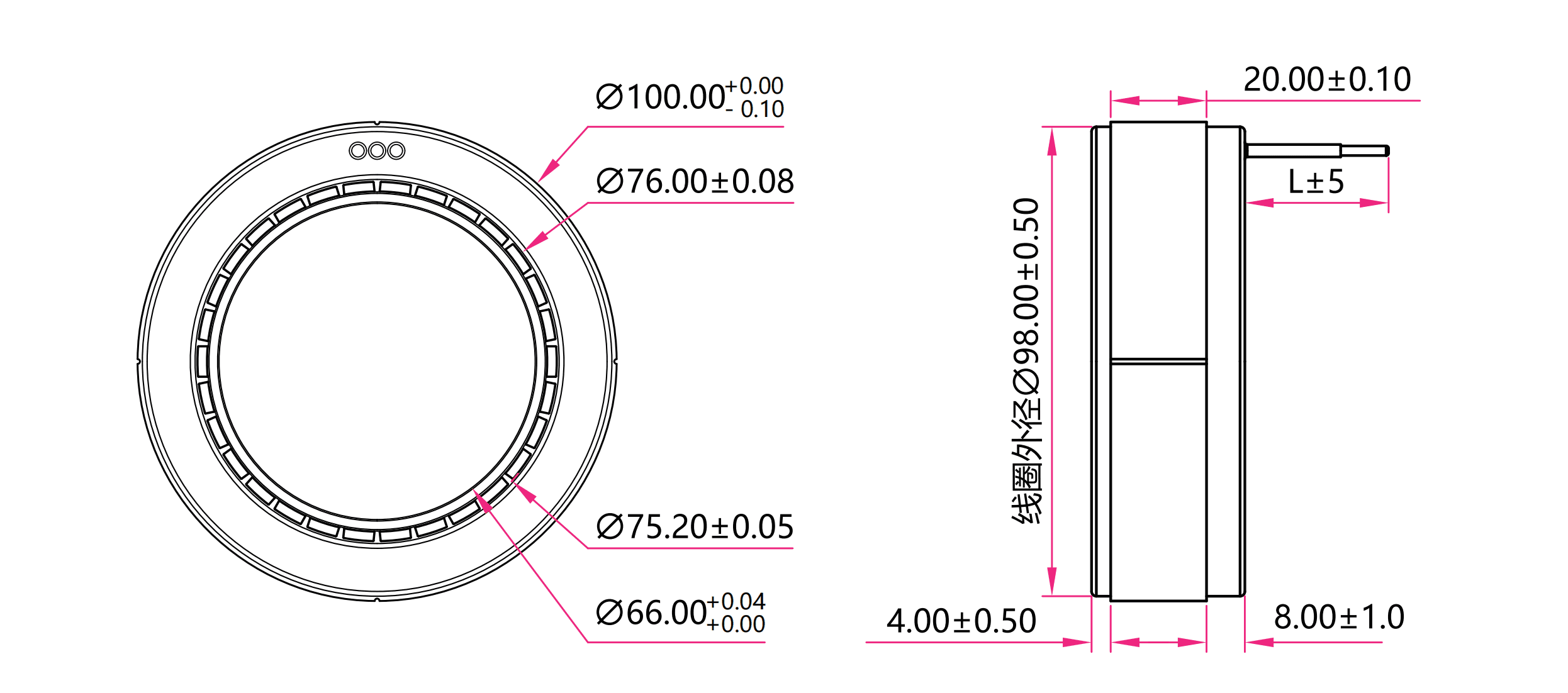

FM10020-N Introduction [Unit: mm]
Stator Outer Diameter:
Φ100 mm
Rotor Shaft Diameter:
Φ66 mm
Height:
32 mm
Weight:
-
Basic Parameters
Motor Type:
Inner Rotor Frameless Motor
Voltage Range:
36-72 VDC
Slots / Poles:
36P 30S
Ambient Temperature Range:
-20~+80 °C
Noise Level:
<= 70 dB(A)
Performance Parameters
Rated Voltage:
48 VDC
Rated Current:
16 A
Rated Power:
718 W
No-load Speed
2530 Rpm
Rated Speed:
2000 Rpm
Rated Torque:
3.43 N.m
Peak Torque:
10.3 N.m
Max-Effciency:
91.7 %
Line-Line Resistance:
-
Line-Line Inductance:
0.09 mH
Torque Constant:
0.153 Nm/A
Back-EMF Constant:
0.180 Va/Rad

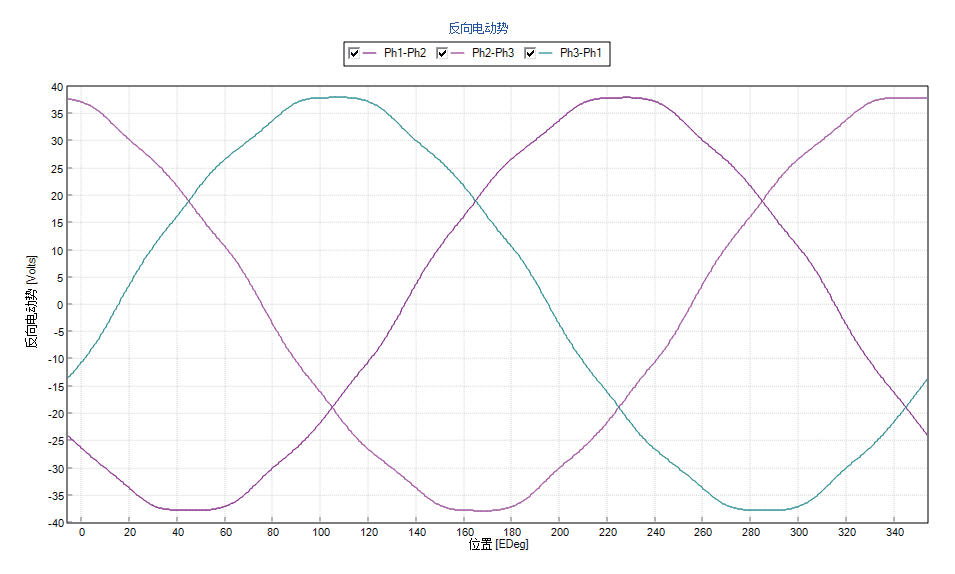

Back-EMF Constant Curve
