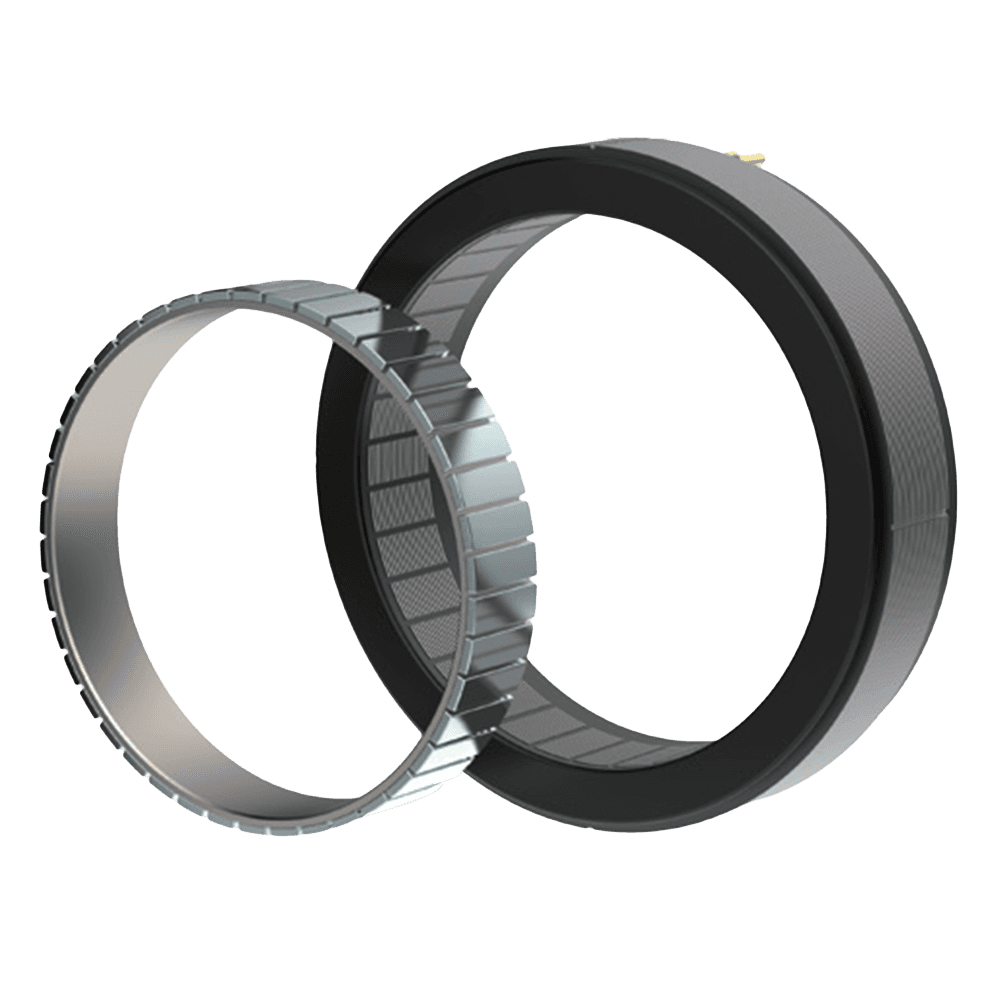

Frameless Torque Motor
FM13020-N
Costr. Frameless Torque Motor
Costr. Engine Series

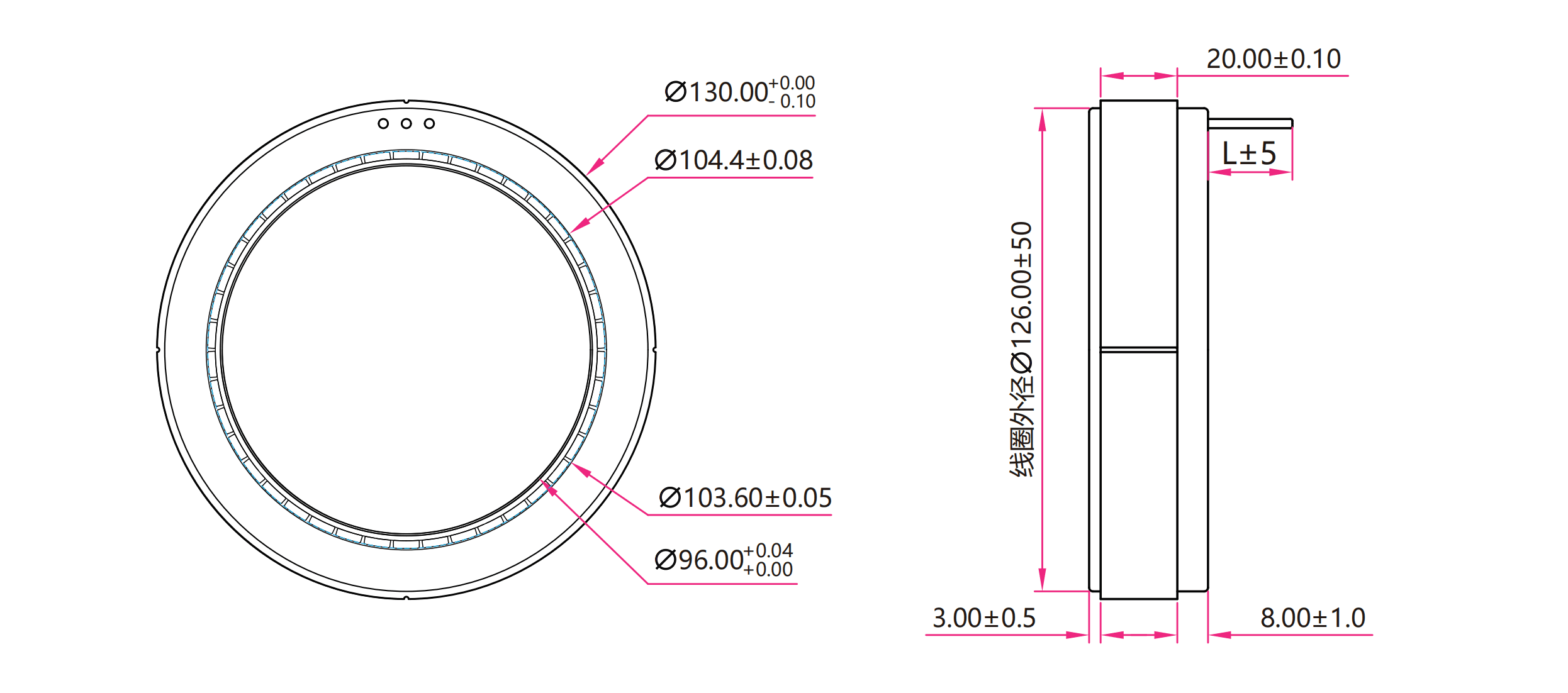

FM13020-N Introduction [Unit: mm]
Stator Outer Diameter:
Φ130 mm
Rotor Shaft Diameter:
Φ96 mm
Height:
31 mm
Weight:
-
Basic Parameters
Motor Type:
Inner Rotor Frameless Motor
Voltage Range:
48-96 VDC
Slots / Poles:
36P 42S
Ambient Temperature Range:
-20~+80 °C
Noise Level:
<= 70 dB(A)
Performance Parameters
Rated Voltage:
48 VDC
Rated Current:
27.5 A
Rated Power:
1320 W
No-load Speed
2100 Rpm
Rated Speed:
1800 Rpm
Rated Torque:
7.0 N.m
Peak Torque:
21 N.m
Max-Effciency:
90.1 %
Line-Line Resistance:
-
Line-Line Inductance:
0.09 mH
Torque Constant:
0.182 Nm/A
Back-EMF Constant:
0.217 Va/Rad

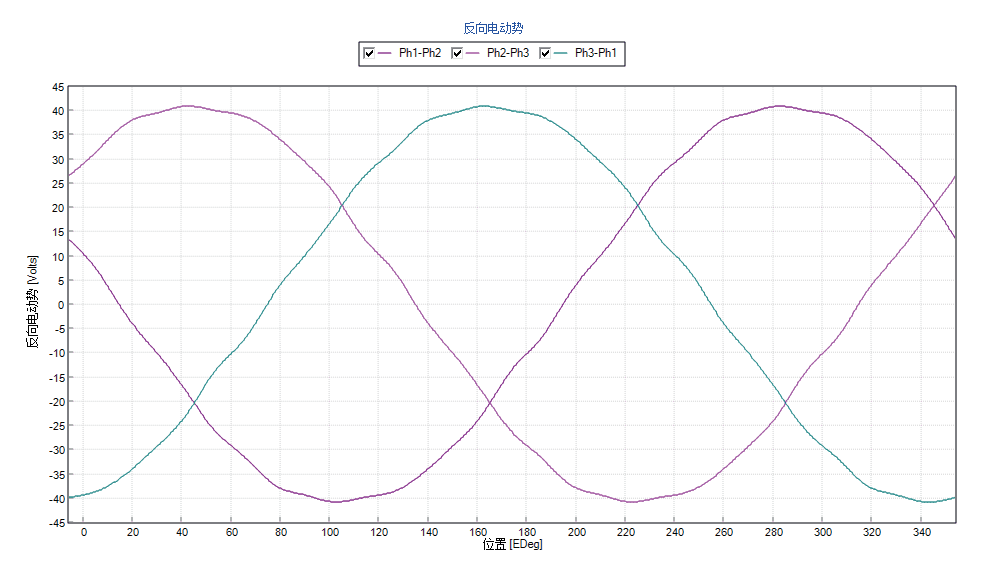

Back-EMF Constant Curve
