Frameless Torque Motor
FM13020-W
Costr. Frameless Torque Motor
Costr. Engine Series

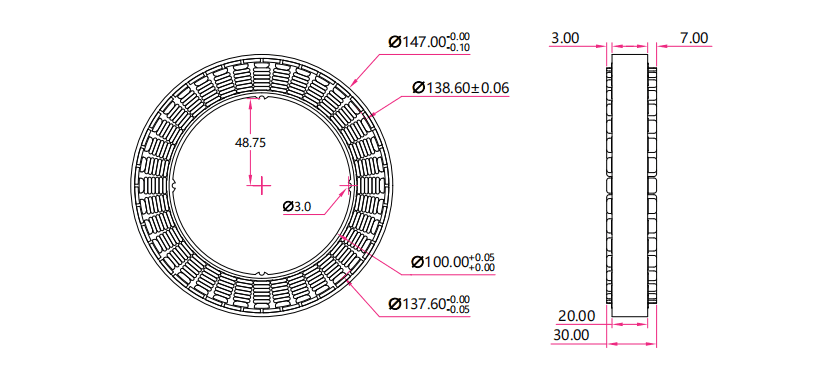

FM13020-W Introduction [Unit: mm]
Stator Outer Diameter:
Φ147.5 mm
Rotor Shaft Diameter:
Φ100 mm
Height:
20 mm
Weight:
-
Basic Parameters
Motor Type:
Inner Rotor Frameless Motor
Voltage Range:
48-96 VDC
Slots / Poles:
36P 40S
Ambient Temperature Range:
-20~+80 °C
Noise Level:
<= 70 dB(A)
Performance Parameters
Rated Voltage:
48 VDC
Rated Current:
35 A
Rated Power:
1698 W
No-load Speed
1750 Rpm
Rated Speed:
1500 Rpm
Rated Torque:
10.8 N.m
Peak Torque:
32 N.m
Max-Effciency:
93.5 %
Line-Line Resistance:
-
Line-Line Inductance:
0.162 mH
Torque Constant:
0.221 Nm/A
Back-EMF Constant:
0.261 Va/Rad
Back-EMF Constant Curve
