Frameless Torque Motor
FM3010-W
Costr. Frameless Torque Motor
Costr. Engine Series

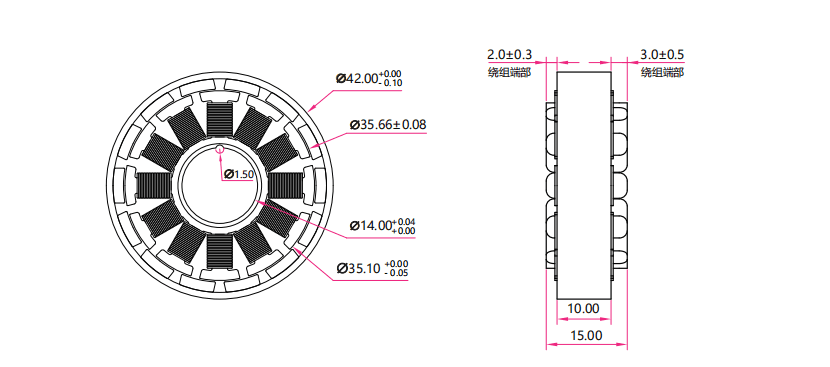

FM3010-W Introduction [Unit: mm]
Stator Outer Diameter:
Φ42 mm
Rotor Shaft Diameter:
Φ14 mm
Height:
10 mm
Weight:
-
Basic Parameters
Motor Type:
Inner Rotor Frameless Motor
Voltage Range:
24-48 VDC
Slots / Poles:
12P 14S
Ambient Temperature Range:
-20~+80 °C
Noise Level:
<= 70 dB(A)
Performance Parameters
Rated Voltage:
24 VDC
Rated Current:
2.6 A
Rated Power:
52.5 W
No-load Speed
5400 Rpm
Rated Speed:
4800 Rpm
Rated Torque:
0.1 N.m
Peak Torque:
0.3 N.m
Max-Effciency:
82.8 %
Line-Line Resistance:
-
Line-Line Inductance:
0.29 mH
Torque Constant:
0.37 Nm/A
Back-EMF Constant:
0.043 Va/Rad
Back-EMF Constant Curve
