Frameless Torque Motor
FM5010-W
Costr. Frameless Torque Motor
Costr. Engine Series

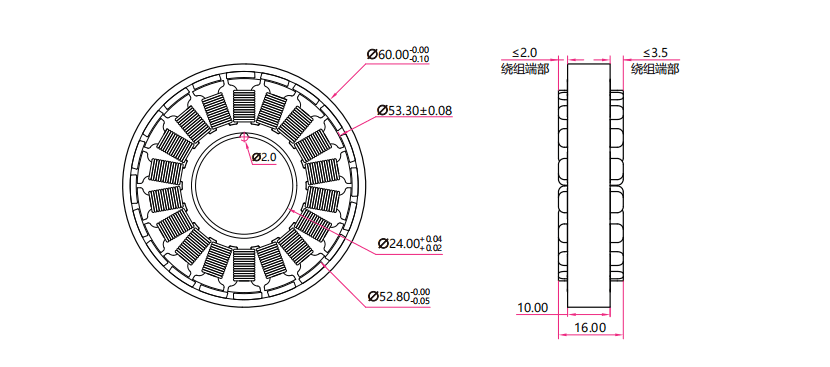

FM5010-W Introduction [Unit: mm]
Stator Outer Diameter:
Φ60 mm
Rotor Shaft Diameter:
Φ24 mm
Height:
10 mm
Weight:
-
Basic Parameters
Motor Type:
Inner Rotor Frameless Motor
Voltage Range:
24-48 VDC
Slots / Poles:
18P 20S
Ambient Temperature Range:
-20~+80 °C
Noise Level:
<= 70 dB(A)
Performance Parameters
Rated Voltage:
48 VDC
Rated Current:
22.9 A
Rated Power:
793 W
No-load Speed
10800 Rpm
Rated Speed:
8000 Rpm
Rated Torque:
0.94 N.m
Peak Torque:
2.8 N.m
Max-Effciency:
82.4 %
Line-Line Resistance:
-
Line-Line Inductance:
0.05 mH
Torque Constant:
0.03 Nm/A
Back-EMF Constant:
0.037 Va/Rad
Back-EMF Constant Curve
